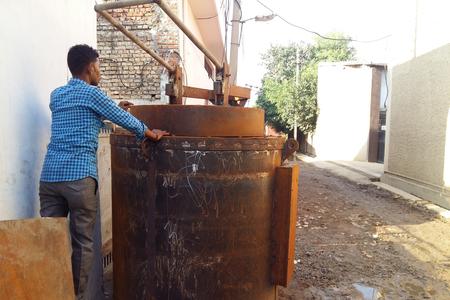

Pit Pot Type Annealing Furnace [Pit Pot Type Annealing Furnace]


We are profound manufacturer and supplier of Pit Pot Type Annealing Furnace which are electrically heated with automatic temperature control and fuel fired using gas or oil. The furnaces are suitable for annealing of ferrous and non ferrous materials. The furnaces use retort assembly either sand sealed or vacuum sealed under inert atmosphere. For MS wires retort assembly is sand sealed (binding wires) or vacuum sealed for scale free annealing of wires to be used for electro galvanizing. For alloy steel wire coils are processed under vacuum and inert atmosphere to prevent decarburization. For copper wires retort assembly is vacuum sealed. Retort assembly with circular fan is used for High-perm decarburization of electrical stampings.

Features:

Normally the furnace uses AISI-304 steel pot
The pot is fabricated using dished bottom for improved mechanical strength
The furnace is constructed using various grades of ceramic fiber blankets and refractories
Provision for Water Cooling of the rubber seal gives good life of the seal
Specifications:

Temperature: 800 °C to 1000 °C
Material: AISI-310 Steel Pot
Size: Customized as per client
Length: Customized as per client
